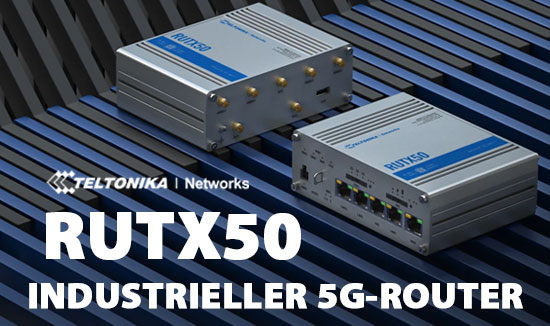

Teltonika RUTX50 – Industrieller 5G-Router der Extraklasse

Teltonika RUTX50

5G-Dual-SIM-Mobilfunkkommunikation kombiniert mit 5 Gigabit-Ethernet-Ports und Dual-Band-Wi-Fi ermöglicht eine zuverlässige Datenübertragung mit extrem niedriger Latenz. Die Leistungsfähigkeit der 5G-Technologie in Kombination mit einer breiten Palette von Schnittstellen und industriellen Hardware-Funktionen gewährleistet die Anpassungsfähigkeit für zukünftige Upgrades und Erweiterungen.

  • 5G
    Ultrahohe Geschwindigkeiten der Mobilfunknetze von bis zu 3,3 Gbps
  • DUAL SIM
    Unterbrechungsfreie Kommunikation mit Auto-Failover
  • SA & NSA
    Unterstützt beide Architekturen, um die 5G-Infrastruktur wirksam einzusetzen
  • ZUKUNFTSSICHERHEIT
    Abwärtskompatibel zu 4G (LTE CAT 20) und 3G-Netzwerktechnologien

MOBILE

  • Mobile module5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4×4 MIMO), 900/600 Mbps UL (2×2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL
  • SIM switch2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
  • StatusSignal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID, Carrier aggregation
  • SMSSMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
  • USSDSupports sending and reading Unstructured Supplementary Service Data messages
  • Black/White listOperator black/white list
  • Multiple PDNPossibility to use different PDNs for multiple network access and services
  • Band managementBand lock, Used band status display
  • APNAuto APN
  • BridgeDirect connection (bridge) between mobile ISP and device on LAN
  • PassthroughRouter assigns its mobile WAN IP address to another device on LAN

WIRELESS

  • Wireless mode802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
  • WiFi securityWPA2-Enterprise – PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
  • SSID/ESSIDESSID stealth mode
  • WiFi usersup to 150 simultaneous connections
  • Wireless HotspotCaptive portal (Hotspot), internal/external Radius server, built in customizable landing page
  • Wireless mesh/roamingWireless mesh (802.11s), fast roaming (802.11r)

ETHERNET

  • WAN1 x WAN port  10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
  • LAN 4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

NETWORK

  • RoutingStatic routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, NHRP)
  • Network protocolsTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
  • VoIP passthrough supportH.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
  • Connection monitoringPing Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
  • FirewallPort forward, traffic rules, custom rules
  • DHCPStatic and dynamic IP allocation, DHCP Relay, Relayd
  • QoS / Smart Queue Management (SQM)Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
  • DDNSSupported >25 service providers, others can be configured manually
  • Network backupWiFi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
  • Load balancingBalance Internet traffic over multiple WAN connections
  • HotspotInternal/external Radius server, captive portal, built in customizable landing page
  • SSHFSPossibility to mount remote file system via SSH protocol

SECURITY

  • AuthenticationPre-shared key, digital certificates, X.509 certificates
  • FirewallPre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
  • Attack preventionDDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
  • VLANPort and tag based VLAN separation
  • Mobile quota controlCustom data limits for both SIM cards
  • WEB filterBlacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
  • Access controlFlexible access control of TCP, UDP, ICMP packets, MAC address filter

VPN

  • OpenVPNMultiple clients and a server can run simultaneously, 12 encryption methods
  • OpenVPN EncryptionDES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
  • IPsecIKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
  • GREGRE tunnel
  • PPTP, L2TPClient/Server instances can run simultaneously, L2TPv3 support
  • StunnelProxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
  • DMVPNMethod of building scalable IPsec VPNs
  • SSTPSSTP client instance support
  • ZeroTierZeroTier VPN client support
  • WireGuardWireGuard VPN client and server support

MODBUS TCP SLAVE

  • ID rangeRespond to one ID in range [1;255] or any
  • Allow Remote AccessAllow access through WAN
  • Custom registersMODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality

MODBUS TCP MASTER

  • Supported functions01, 02, 03, 04, 05, 06, 15, 16
  • Supported data formats8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)

MODBUS DATA TO SERVER

  • ProtocolHTTP(S), MQTT, Azure MQTT

MQTT GATEWAY

  • MQTT GatewayAllows sending commands and receiving data from MODBUS Master through MQTT broker

DNP3

  • Supported modesTCP Master, DNP3 Outstation

MONITORING & MANAGEMENT

  • WEB UIHTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
  • FOTAFirmware update from server, automatic notification
  • SSHSSH (v1, v2)
  • SMSSMS status, SMS configuration, send/read SMS via HTTP POST/GET
  • CallReboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, WiFi on/off
  • TR-069OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
  • MQTTMQTT Broker, MQTT publisher
  • SNMPSNMP (v1, v2, v3), SNMP Trap
  • JSON-RPCManagement API over HTTP/HTTPS
  • MODBUSMODBUS TCP status/control
  • RMSTeltonika Remote Management System (RMS)

IOT PLATFORMS

  • Cloud of ThingsAllows monitoring of: Device data, Mobile data, Network info, Availability
  • ThingWorxAllows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
  • CumulocityAllows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength
  • Azure IoT HubCan send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type

SYSTEM CHARACTERISTICS

  • CPUQuad-core ARM Cortex A7, 717 MHz
  • RAM256 MB (100 MB available for userspace)
  • FLASH storage256 MB (80 MB available for userspace)

FIRMWARE / CONFIGURATION

  • WEB UIUpdate FW from file, check FW on server, configuration profiles, configuration backup, restore point
  • FOTAUpdate FW
  • RMSUpdate FW/configuration for multiple devices at once
  • Keep settingsUpdate FW without losing current configuration

FIRMWARE CUSTOMIZATION

  • Operating systemRutOS (OpenWrt based Linux OS)
  • Supported languagesBusybox shell, Lua, C, C++
  • Development toolsSDK package with build environment provided

LOCATION TRACKING

  • GNSSGPS, GLONASS, BeiDou, Galileo and QZSS
  • CoordinatesGNSS coordinates via WebUI, SMS, TAVL, RMS
  • NMEANMEA 0183
  • NTRIPNTRIP protocol (Networked Transport of RTCM via Internet Protocol)
  • Server softwareSupported server software TAVL, RMS
  • GeofencingConfigurable multiple geofence zones

USB

  • Data rateUSB 2.0
  • ApplicationsSamba share, USB-to-serial
  • External devicesPossibility to connect external HDD, flash drive, additional modem, printer
  • Storage formatsFAT, FAT32, NTFS

INPUT / OUTPUT

  • Input
     1 x Digital Input, 0 – 6 V detected as logic low, 8 – 30 V detected as logic high
  • Output
     1 x Digital Output, Open collector output, max output 30 V, 300 mA
  • EventsEmail, RMS, SMS
  • I/O jugglerAllows to set certain I/O conditions to initiate event

POWER

  • Connector4-pin industrial DC power socket
  • Input voltage range9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max
  • PoE (passive)Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 – 50 VDC
  • Power consumptionIdle: < 4W, Max: 18W

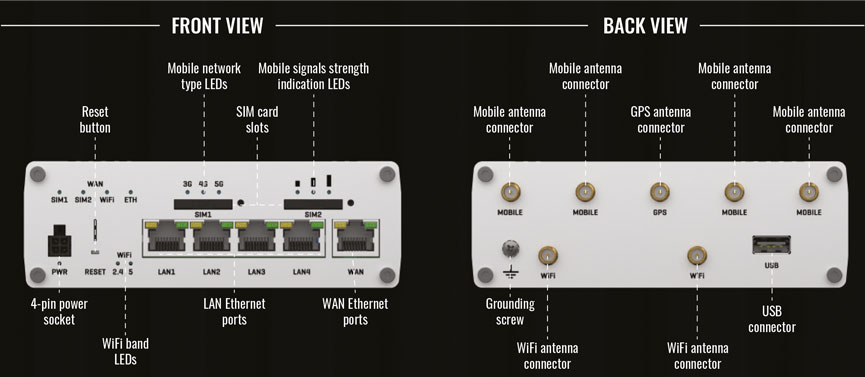

PHYSICAL INTERFACES

  • Ethernet5 x RJ45 ports, 10/100/1000 Mbps
  • I/O’s
     1 x Digital Input, 1 x Digital Output on 4-pin power connector
  •  Status LEDs3 x connection status LEDs, 3 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1x Power LED, 2 x 2.4G and 5G WiFi LEDs
  • SIM2 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
  • Power1 x 4-pin power connector
  • Antennas4 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNNS
  • USB
     1 x USB A port for external devices
  • ResetReboot/User default reset/Factory reset button
  • Other
     1 x Grounding screw

PHYSICAL SPECIFICATION

  • Casing materialAluminum housing
  • Dimensions (W x H x D)132 x 44.2 x 95.1 mm
  • Weight533 g
  • Mounting optionsDIN rail (can be mounted on two sides), flat surface placement

OPERATING ENVIRONMENT

  • Operating temperature-40 °C to 75 °C
  • Operating humidity10% to 90% non-condensing
  • Ingress Protection RatingIP30

Hier geht es zum industriellen 5G-Router RUTX50 von Teltonika
Hier geht es zur Produktübersicht für Produkte von Teltonika
